Features and Benefits
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connector)
- IEEE802.3/802.3u/802.3x support
- Broadcast storm protection
- DIN-Rail mounting ability
- -10 to 60°C operating temperature range
Introduction

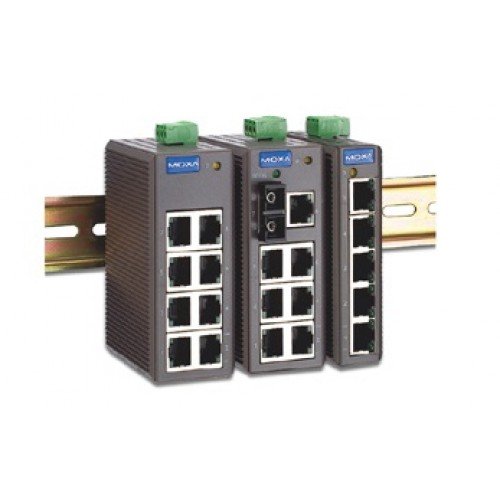

The EDS-205/208 series of industrial Ethernet switches are entry-level industrial 5 and 8-port Ethernet switches that support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205/208 switches are rated to operate at temperatures ranging from -10 to 60°C, and are rugged enough for switchesany harsh industrial environment. The switches can be easily installed on a DIN-Rail as well as in distribution boxes. The DIN-Rail mounting capability, wide operating temperature, and the the IP30 housing with LED indicators make the plug-and-play EDS-205/208 switches easy to use and reliable.
Spesification :
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| • Switch Properties | |
| MAC Table Size | 1 K |
| Packet Buffer Size | 512 Kbit |
| • Interface | |
| Fiber Ports | 100BaseFX ports (SC/ST connector, multi-mode) |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| LED Indicators | Power, 10/100M (TP port), 100M (fiber port) |
| • Optical Fiber | |
 | |
| • Power Requirements | |
| Input Voltage | EDS-205: 12 to 48 VDC, 18 to 30 VAC (47 to 63 Hz) EDS-208 series: 12 to 45 VDC, 18 to 30 VAC (47 to 63 Hz) |
| Input Current | EDS-205: 0.12 A @ 24 V EDS-208: 0.14 A @ 24 V EDS-208-M: 0.23 A @ 24 V |
| Overload Current Protection | 1.1 A |
| Connection | 1 removable 3-contact terminal block |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Plastic, IP30 protection |
| Dimensions | EDS-205: 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in) EDS-208: 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in) |
| Weight | EDS-205: 135 g EDS-208: 170 g |
| Installation | DIN-Rail mounting |
| • Environmental Limits | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | EDS-205: UL 508, EN 60950-1 EDS-208: UL 508, UL 60950-1, EN 60950-1 |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 61000-4-2 (ESD) Level 2, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) (EDS-205: Level 3; EDS-208: Level 2), EN 61000-4-8, EN 61000-4-11 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | EDS-205: 768,000 hrs EDS-208: 368,000 hrs |
| Database | EDS-205: Telcordia (Bellcore), GB EDS-208: MIL-HDBK-217F, GB 25°C |
