Features and Benefits
- Redundant dual 12/24/48 VDC power inputs
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- Transparent transmission of VLAN tagged packets
- -40 to 75?C operating temperature range (T models)
Introduction

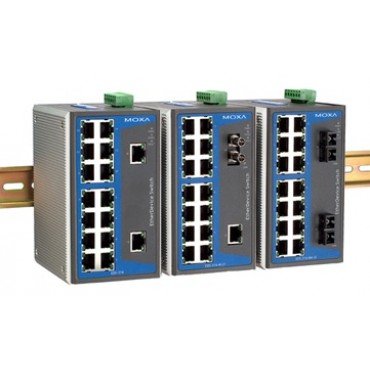

The EDS-316 are 16-port Ethernet switches that provide an economical solution for your industrial Ethernet connections. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments. The switches comply with FCC, TÜV, UL, and CE standards, and come in two model types. Standard operating temperature range models (0 to 60°C) and wide operating temperature range models (-40 to 75°C). Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN-Rail or in a distribution box.
Spesification :
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| Processing Type | Store and Forward |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| • Switch Properties | |
| MAC Table Size | 4 K |
| Packet Buffer Size | 1.25 Mbit |
| • Interface | |
| Fiber Ports | 100BaseFX ports (SC/ST connector) |
| RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| DIP Switches | • Port break alarm mask • Enable/disable broadcast storm protection |
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port) |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| • Power Requirements | |
| Input Voltage | 12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs |
| Input Current | EDS-316: 0.27 A @ 24 V EDS-316-M/S/MM/SS/MS: 0.44 A @ 24 V |
| Overload Current Protection | 1.6 A |
| Connection | 1 removable 6-pin terminal blocks |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in) |
| Weight | 1140 g |
| Installation | DIN-Rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC (EDS-316 Series V2.0 pending) |
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
| EMS | EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) (EDS-305/308: Level 2; EDS-309/316: Level 3) |
| Marine | DNV, GL |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | 257,000 hrs |
| Database | MIL-HDBK-217F, GB 25°C |
