Features and Benefits
- Small size for easy installation
- Real COM/TTY drivers for Windows and Linux
- Standard TCP/IP interface and versatile operation modes
- Easy-to-use Windows utility for configuring multiple device servers
- Built-in 15 KV ESD protection for all serial signals
- SNMP MIB-II for network management
- Configure by Telnet or web browser
- Adjustable termination resistor for RS-485 ports
- Supports Moxa’s MXview industrial network management software via the MXview Plug-in
Overview

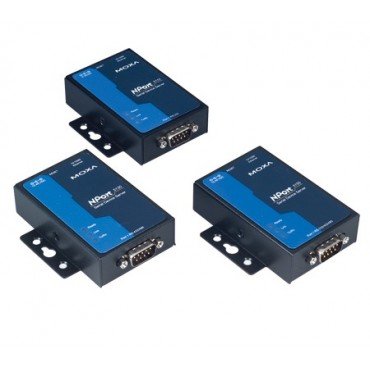

NPort 5100 series device servers are designed to make serial devices network-ready in an instant. The small size of the servers makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort 5100 series device servers to give your PC software direct access to serial devices from anywhere on the network.
Spesification :
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 KV built-in |
| • Serial Interface | |
| Number of Ports | 1 |
| Serial Standards | NPort 5110: RS-232 NPort 5130: RS-422/485 NPort 5150: RS-232/422/485 |
| Connector | DB9 male |
| Serial Line Protection | 15 KV ESD protection for all signals |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 KΩ, 150 KΩ |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | NPort 5110: 110 bps to 230.4 Kbps NPort 5130/5150: 50 bps to 921.6 Kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP |
| Configuration Options | Web Console, Serial Console (NPort 5110/5150 only), Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x, 3.x |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | 340 g |
| Dimensions | Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) (for NPort 5110-T) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | NPort 5110: 128.7 mA @ 12 V, 72 mA @ 24 V NPort 5130/5150: 200 mA @ 12 V, 106 mA @ 24 V |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024 |
| • Reliability | |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) | NPort 5110: 279,122 hrs NPort 5130: 246,505 hrs NPort 5150: 246,034 hrs |
