Features and Benefits
- 8 serial ports supporting RS-232/422/485
- Compact desktop design
- 10/100M auto-sensing Ethernet
- Built-in 15 KV ESD protection for all serial signals
- Easy IP address configuration with LCD panel
- Choice of configuration methods: Web console, Telnet console, and Windows utility
- Versatile socket operation modes, including TCP Server, TCP Client, UDP, and Real COM
- SNMP MIB-II for network management
- Supports Moxa’s MXview industrial network management software via the MXview Plug-in
Introduction

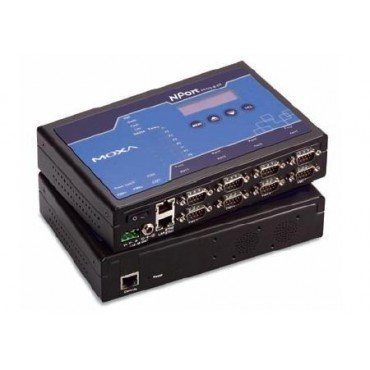

NPort® 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort® 5600-8-DT device servers have a smaller form factor compared to our 19″ models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.
Spesification :
| • Ethernet Interface | |
| Number of Ports | 2 (1 IP) |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 KV built-in |
| • Serial Interface | |
| Number of Ports | 8 |
| Serial Standards | NPort 5610-8-DT: RS-232 NPort 5650-8-DT: RS-232/422/485 |
| Connector | NPort 5610-8-DT/5650-8-DT/5650I-8-DT: DB9 male NPort 5610-8-DT-J/5650-8-DT-J: RJ45 (8 pins) |
| Serial Line Protection | 15 KV ESD protection for all signals 2 KV isolation protection (NPort 5650I-8-DT only) |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 KΩ, 150 KΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF |
| Baudrate | 50 bps to 921.6 Kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP, RFC2217 |
| Configuration Options | Web Console, Telnet Console, Serial Console, Windows Utility |
| Windows RealCOM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x, 3.x |
| • Mini Screen with Push Buttons | |
| LCD Panel | Liquid Crystal Display on the case |
| Push Buttons | Four push buttons for convenient on-site configuration |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Weight | NPort 5610-8-DT: 1760 g NPort 5610-8-DT-J: 1710 g NPort 5650-8-DT: 1770 g NPort 5650-8-DT-J: 1710 g NPort 5650I-8-DT: 1850 g |
| Dimensions | Without ears: 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in) With ears: 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in) With DIN-Rail kit on bottom panel: 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in) |
| • Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | NPort 5610-8-DT: 611 mA @ 12 V, 300 mA @ 24 V, 140 mA @ 48 V NPort 5610-8-DT-J: 611 mA @ 12 V, 300 mA @ 24 V, 140 mA @ 48 V NPort 5650-8-DT: 615 mA @ 12 V, 300 mA @ 24 V, 156 mA @ 48 V NPort 5650I-8-DT: 1066 mA @ 12 V, 510 mA @ 24 V, 200 mA @ 48 V NPort 5650-8-DT-J: 615 mA @ 12 V, 300 mA @ 24 V, 156 mA @ 48 V |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024 |
| • Reliability | |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) | 163,356 hrs |
