Features and Benefits
- Versatile socket operation modes, including TCP Server, TCP Client, UDP
- Patented ADDC® (automatic data direction control) for 2-wire and 4-wire RS-485
- Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
- Redundant DC power inputs
- Warning by relay output and e-mail
- 10/100BaseTX (RJ45) or 100BaseFX (single mode or multimode with SC connector)
- IP30-rated housing
- Supports Moxa’s MXview industrial network management software via the MXview Plug-in
Overview

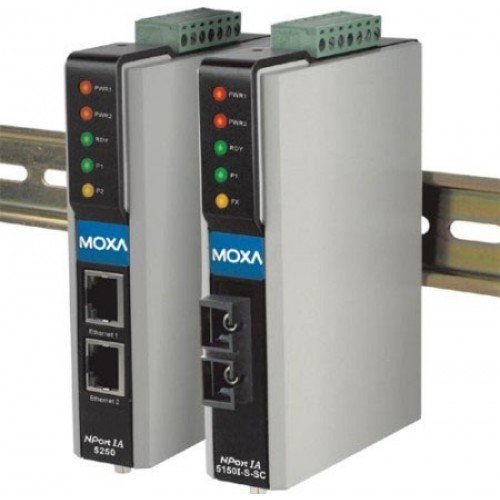

NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.
Spesification :
| • Ethernet Interface (NPort IA5150/5150I/5250) | |
| Number of Ports | 2 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 KV built-in |
| • Optical Fiber Interface (-M-SC and -S-SC models) | |
 | |
| • Serial Interface | |
| Number of Ports | NPort IA5150: 1 NPort IA5250: 2 |
| Serial Standards | RS-232/422/485 |
| Connector | NPort IA5150: DB9 male for RS-232, terminal block for RS-422/485 NPort IA5250: DB9 male for RS-232/422/485 |
| Serial Line Protection | 15 KV ESD protection for all signals 2 KV isolation protection (NPort IA5150I, NPort 5150I-M-SC, NPort 5150I-S-SC) |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | 110 bps to 230.4 Kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP V1, HTTP, SMTP, SNTP |
| Configuration Options | Web Console, Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Driver | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x, 3.x |
| • Physical Characteristics | |
| Housing | Plastic, IP30 protection |
| Weight | NPort IA5150: 360 g NPort IA5250: 380 g |
| Dimensions | 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | NPort IA5150: 360 mA @ 12 V, 195 mA @ 24 V NPort IA5150I: 420 mA @ 12 V, 215 mA @ 24 V NPort IA5250: 440 mA @ 12 V, 200 mA @ 24 V NPort IA5150-S-SC: 470 mA @ 12 V, 210 mA @ 24 V NPort IA5150I-S-SC: 490 mA @ 12 V, 250 mA @ 24 V NPort IA5150-M-SC: 500 mA @ 12 V, 250 mA @ 24 V NPort IA5150I-M-SC: 510 mA @ 12 V, 260 mA @ 24 V |
| • Standards and Certifications | |
| Safety | UL 508, UL 60950-1, EN 60950-1 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx Zone 2 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024, EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11 |
| Marine | DNV |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • Reliability | |
| Water and Dust Proof | IP30 |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) | NPort IA5150 Series: 183,747 hrs NPort IA5150I Series: 195,614 hrs NPort IA5250 Series: 194,765 hrs |
