Features and Benefits
- IEEE 802.3af-compliant PoE PD equipment  Â
- Speedy 3-step web-based configuration Â
- Surge protection for serial, Ethernet, and power lines
- COM port grouping and UDP multicast applications
- Screw connectors for secure installation
- Real COM/TTY drivers for Windows and Linux
- Standard TCP/IP interface and versatile TCP and UDP operation modes
Overview

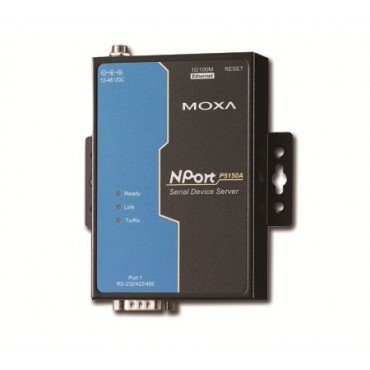

NPort P5150A device servers are designed to make serial devices network-ready in an instant. It is a PD device and is IEEE 802.3af compliant, so it can by powered by a PoE PSE device without an additional power supply. Use the NPort P5150A device servers to give your PC software direct access to serial devices from anywhere on the network. The NPort P5150A device servers are ultra lean, ruggedized, and user friendly, making simple and reliable serial to Ethernet solutions possible.
Spesification :
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 KV built-in |
| •Serial Interface | |
| Number of Ports | 1 |
| Serial Standards | RS-232/422/485 |
| Connector | DB9 male |
| Serial Line Protection | 15 KV ESD protection for all signals, Level 2 Surge, EN61000-4-5 |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 KΩ, 150 KΩ |
| •Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate | 50 bps to 921.6 Kbps |
| •Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| •Software | |
| Network Protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2 |
| Configuration Options | Web Console (with new Quick Setup), Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64 |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac 10.3 |
| Linux Real TTY Drivers | Linux kernel 2.4.x, 2.6.x. 3.x |
| • Physical Characteristics | |
| Housing | Metal |
| Weight | 150 g |
| Dimensions | Without ears: 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)With ears: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | Up to 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC (supplied by power adapter) or 48 VDC (supplied by PoE) |
| Power Consumption | 125 mA @ 12 V, 40 mA @ 48 VDC (supplied by power adapter) 180 mA @ 48 V (supplied by PoE) |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | CE, FCC |
| EMI | EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS | EN 55024 |
| Power Line Protection | EN 61000-4-4(EFT) Level 2,EN 61000-4-5(Surge) Level 3 |
| • Reliability | |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) | 2,231,530 hrs |
