Features and Benefits
- Five band UMTS/HSPA 800/850/AWS/1900/2100MHz
- Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
- Connect to Ethernet and serial devices over an integrated VPN
- Centralize private IP management software with OnCell Central Manager
- Redundant DC power inputs
- 2 digital inputs and 1 relay output
Introduction

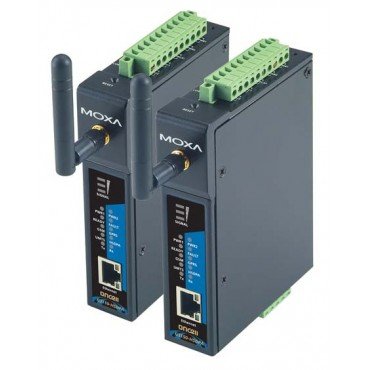

The OnCell G3110/G3150-HSPA series of high-speed industrial-grade IP gateways are intelligent and fully-featured wireless communication platforms that connect your Ethernet and serial devices over a cellular TCP/IP network. The OnCell G3110/G3150-HSPA series offer connectivity to all tri HSPA/UMTS frequency bands and quad GSM/GPRS/EDGE frequency bands used in Europe, the United States, and Japan, allowing seamless global roaming on the best available network. The OnCell G3110/G3150-HSPA come with private IP management software and support VPN for handling the IP address issue in cellular network structures. The OnCell G3110/G3150-HSPA also have a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field. Two digital inputs also allow you to connect basic I/O devices, and the OnCell G3110/G3150-HSPA comes with redundant power inputs to assure non-stop operation.
| • Cellular Interface | |
| Standards | GSM/GPRS/EDGE/UMTS/HSPA |
| Band Options | • Five band UMTS/HSPA 800/850/AWS/1900/2100 MHz • Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz |
| HSPA+ Data Rate | 14.4 Mbps DL, 5.76 Mbps UL |
| EDGE Multi-slot Class | Class 12 |
| EDGE Terminal Device Class | Class B |
| GPRS Multi-slot Class | Class 12 |
| GPRS Terminal Device Class | Class B |
| GPRS Coding Schemes | CS1 to CS4 |
| Tx Power | GSM900: 2 W UMTS/HSPA: 0.25 W EDGE900: 0.5 W EDGE1800: 0.4 W GSM1800: 1 W |
| • LAN Interface | |
| Number of Ports | 1 |
| Ethernet | 10/100 Mbps, RJ45 connector, Auto MDI/MDIX |
| Magnetic Isolation Protection | 1.5 KV built-in |
| • SIM Interface | |
| Number of SIMs | 1 (NOTE: This product does not include a SIM card.) |
| SIM Control | 3 V |
| • Serial Interface | |
| Number of Ports | 1 |
| Serial Standards | G3110: RS-232 (DB9 male connector) G3150: RS-232 (DB9 male connector), RS-422/485 (5-pin terminal block connector) |
| ESD Protection | 15 KV |
| Power EFT/Surge Protection | 2 KV |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 (when parity = None) |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 50 bps to 921.6 Kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • I/O Interface | |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs | 2 electrically isolated inputs • +13 to +30 V for state “1” (On) • +3 to -30 V for state “0” (Off) |
| • Software | |
| Network Protocols | ICMP, TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, SMTP, HTTPS, SNTP, ARP, SSL, RTSP, IPSec |
| Router/Firewall | NAT, port forwarding |
| Authentication | Local user-name and password |
| Security | Accessible IP list |
| Operation Modes | Real COM, Secure Real COM, Reverse Real COM, Secure Reverse Real COM, TCP Server, Secure TCP Server, TCP Client, Secure TCP Client, UDP, RFC2217, Ethernet Modem, SMS Tunnel |
| Configuration and Management Options | SNMP MIB-II, SNMP Private MIB, SNMPv1/v2c/v3, DDNS, IP Report, Web/Telnet/Serial-Console/SSH |
| Utilities | Provided for Windows 2000/XP/2003/Vista/7/Server 2008, Windows XP/2003/Vista/7/Server 2008 x64 Edition |
| Windows Real COM Drivers | Windows 2000/XP/2003/Vista/7/Server 2008, Windows XP/2003/Vista/7/Server 2008 x64 Edition |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer 5, SCO OpenServer 6, UnixWare 7, SVR4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD 5, FreeBSD 6 |
| Linux Real TTY Drivers | Linux kernels 2.2.x, 2.4.x, 2.6.x |
| • Management Software | |
| OnCell Central Manager | Centralized management solution for accessing private IPs from the Internet |
| • Physical Characteristics | |
| Housing | Aluminum, providing IP30 protection |
| Weight | 440±5 g |
| Dimensions | 125.5 x 28.0 x 92.5 mm (4.94 x 1.10 x 3.64 in) |
| • Environmental Limits | |
| Operating Temperature | • Standard Models: -30 to 55°C (-22 to 131°F) • Wide Temp. Models: -30 to 70°C (-22 to 158°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| • Power Requirements | |
| Number of Power Inputs | 2 (terminal block) |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 12 to 48 VDC, 400 mA (idle), 900 mA (max.) |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55022 Class A, EN 55024, FCC Part 15 Subpart B Class A |
| Radio | FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511 |
| • Reliability | |
| MTBF (mean time between failures) | 380,000 hrs |
